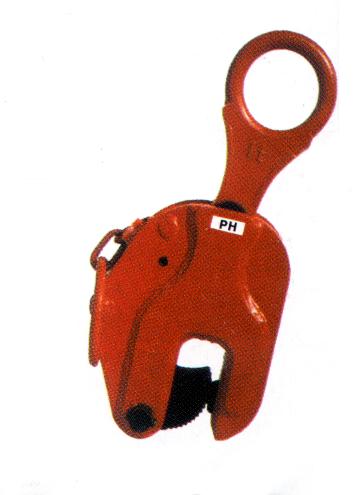

PH PLATE LIFTING CLAMP
| Model | Capacity | Jaw Opening | Dimension | Net Weight | |||||||||
| (ton) | (mm) | A | B | C | D | E | F | G | H | I | J | (kg) | |
| PLC-1 | 1 | 0-20 | 23 | 36 | 124 | 5 | 24 | 225-265 | 33 | 155 | 51 | 14 | 3.6 |
| PLC-2 | 2 | 0-30 | 35 | 45 | 153 | 60 | 30 | 253-305 | 40 | 194 | 60 | 16 | 6.0 |
| PLC-3 | 3 | 0-35 | 40 | 50 | 175 | 60 | 35 | 296-353 | 45 | 226 | 68 | 19 | 9.3 |
| PLC-5 | 4 | 0-50 | 50 | 50 | 218 | 65 | 45 | 380-440 | 57 | 260 | 76 | 22 | 17 |
